Assembly

This section describes the assembly of the machine. It should now be as detailed as a manual from Ikea and I try to mention all important points.

Follow the instructions in the order below: frame, portal, z axis, electronics.
The word “tight” after screw dimensions means that these screws can be fixed because they don’t have to be unscrewed again later. “loose” means that the parts should only be temporarily lightly fixed to one another. In most cases, the parts have to be aligned with one another in a later step and only then be finally fixed.
Be very meticulous about aligning the parts, take your time (at best, days rather than hours). It is satisfying to assemble the machine quickly, however, you will have the deviations that you do not minimize in your milled parts later.
If you have questions after reading the instructions feel free to ask them in our Facebook group or on Discord.

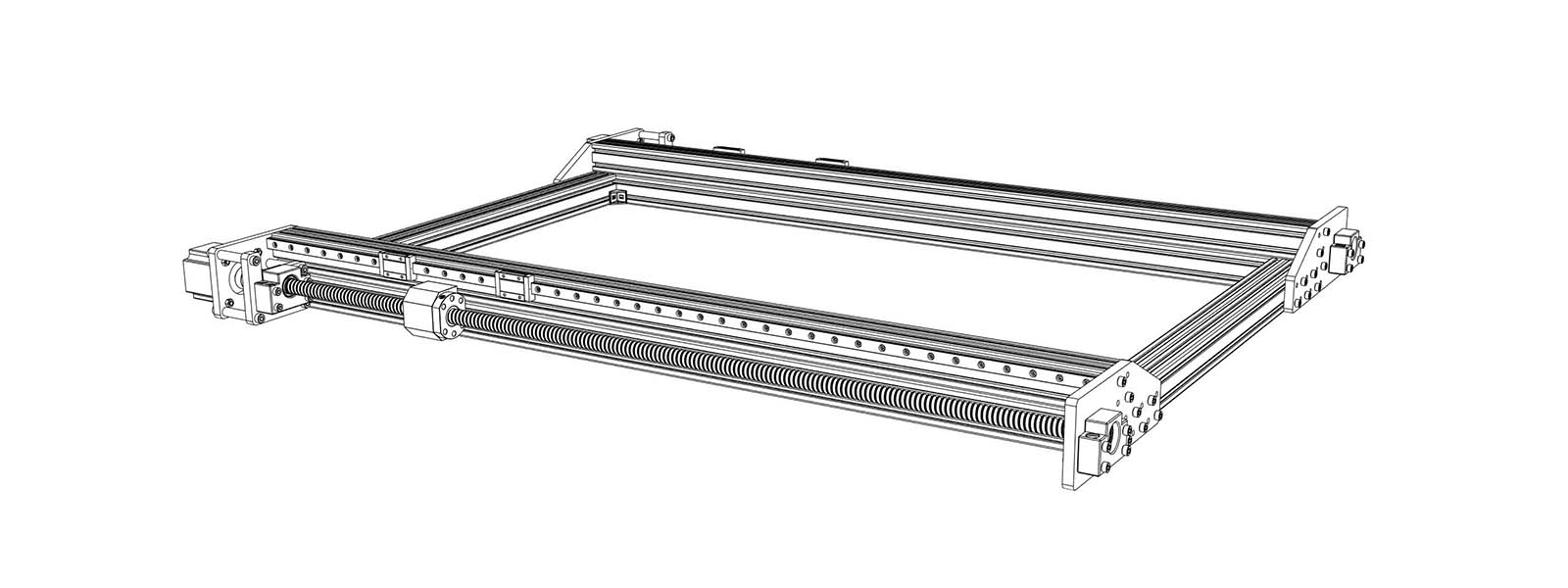

Assembly of the Frame

Required parts:

Extruded profiles 2x 40x80 and 2x 40x40,
Brackets
2x MGN12 rails 1000 mm
4x MGN12H rail blocks
Milled plates starting with “Cindymill_Frame_..”
8x 40 mm steel sockets
2x fixed bearing block BK12
2x bearing block BF12
2x Ball screw SFU1605 1000 mm
2x ball nut holder
2x NEMA23 motor
2x motor coupler
Screws and nuts (see parts list)

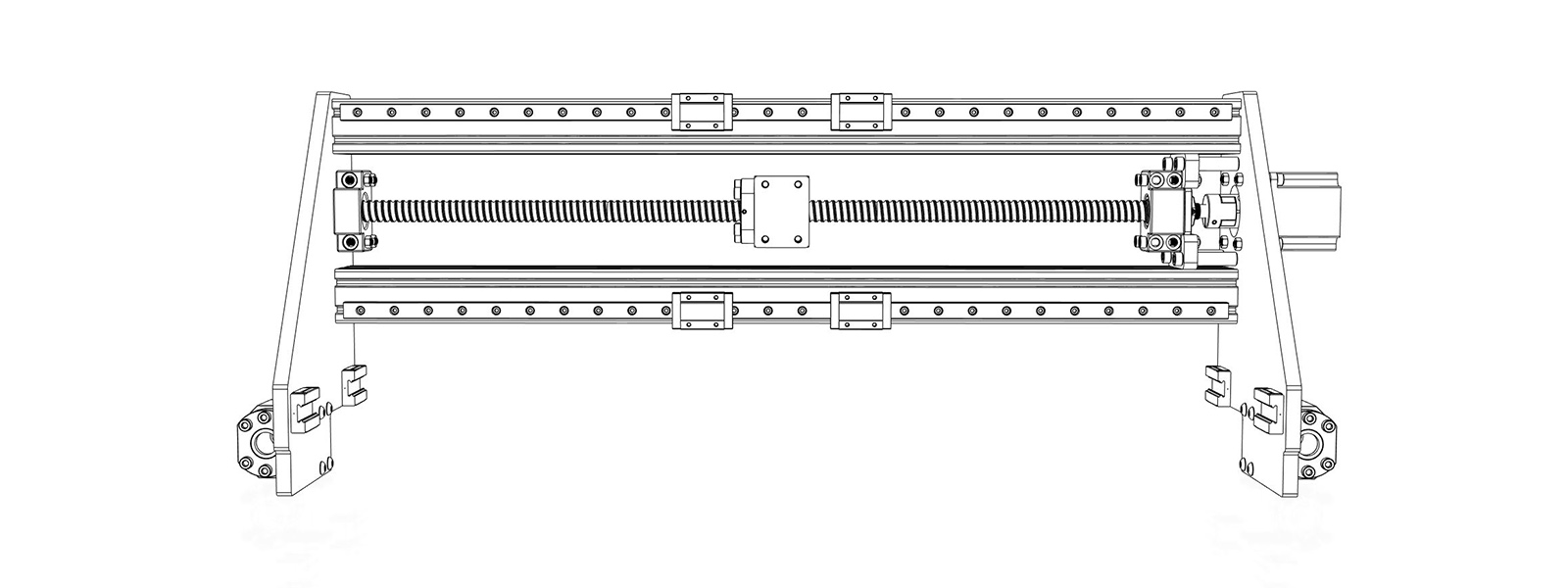

Assembly of the Portal

Required parts:

Extruded profiles 2x 40x60,
2x MGN12 rails 650 mm
4x MGN12H rail blocks
Milled plates starting with “Cindymill_Portal_..”
4x 30 mm steel sockets
1x fixed bearing block BK12
1x bearing block BF12
1x Ball screw SFU1605 650 mm
1x ball nut holder
1x NEMA23 motor
1x motor coupler
Screws and nuts (see parts list)

Assembly of the Z Axis

Required parts:

Extruded profiles 2x 20x20x270,
2x MGN12 rails 250 mm
4x MGN12H rail blocks
Milled plates starting with “Cindymill_Z_Axis_..”
8x 3D printed spacers
1x fixed bearing block BK10
1x bearing block BF10
1x Ball screw SFU1204 250 mm
1x ball nut holder
1x NEMA23 motor
1x motor coupler
Screws and nuts (see parts list)

Electronics

Coming soon!
